Protect your electrical systems with high-performance surge protection solutions backed by expert engineering and reliable support.

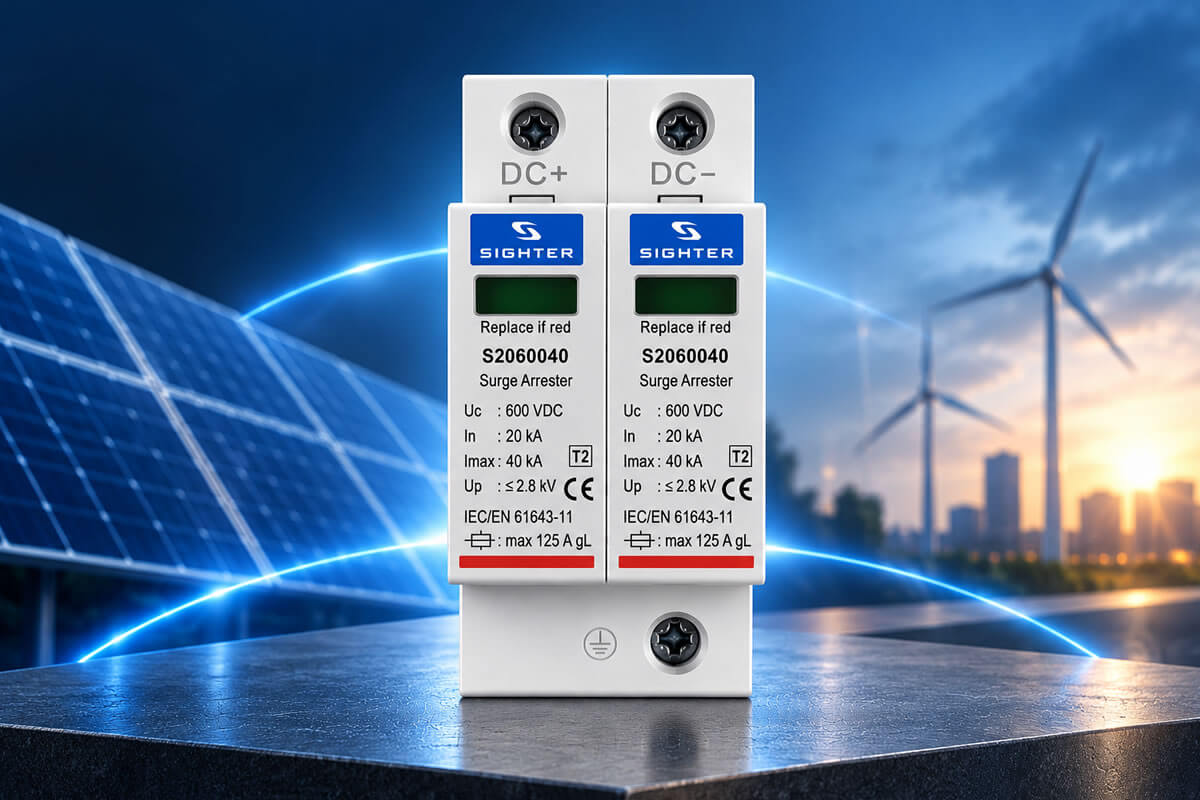

The SIGHTER S2060040 Surge Arrester is specially designed for solar and DC power systems. With advanced protection features and CE certification, it defends sensitive electronics from high-voltage transients, lightning strikes, and electrical surges. Ideal for solar inverters, DC panels, and off-grid energy setups.
Model: S2060040
Rated DC Voltage (Uc): 600 VDC
Nominal Discharge Current (In): 20kA (8/20 μs)
Maximum Discharge Current (Imax): 40kA (8/20 μs)
Voltage Protection Level (Up): ≤ 2.5 kV
Response Time: < 25ns
Indication Window: Green = Normal, Red = Replace
Poles: DC+ and DC− (2P)
Compliance: CE Certified, T2 Type
Application: Solar Panels, Battery Systems, DC Boards
SIGHTER is a trusted manufacturer of high-performance Surge Protective Devices (SPDs) and Surge Arresters, delivering reliable protection against lightning strikes, power surges, and transient over voltages.
